Description
The Sonken 4000D delivers rock-solid wireless performance with 200 total UHF channels (100 per microphone) across the 520–569 MHz range—giving you exceptional flexibility and zero channel conflicts, even in busy commercial environments.

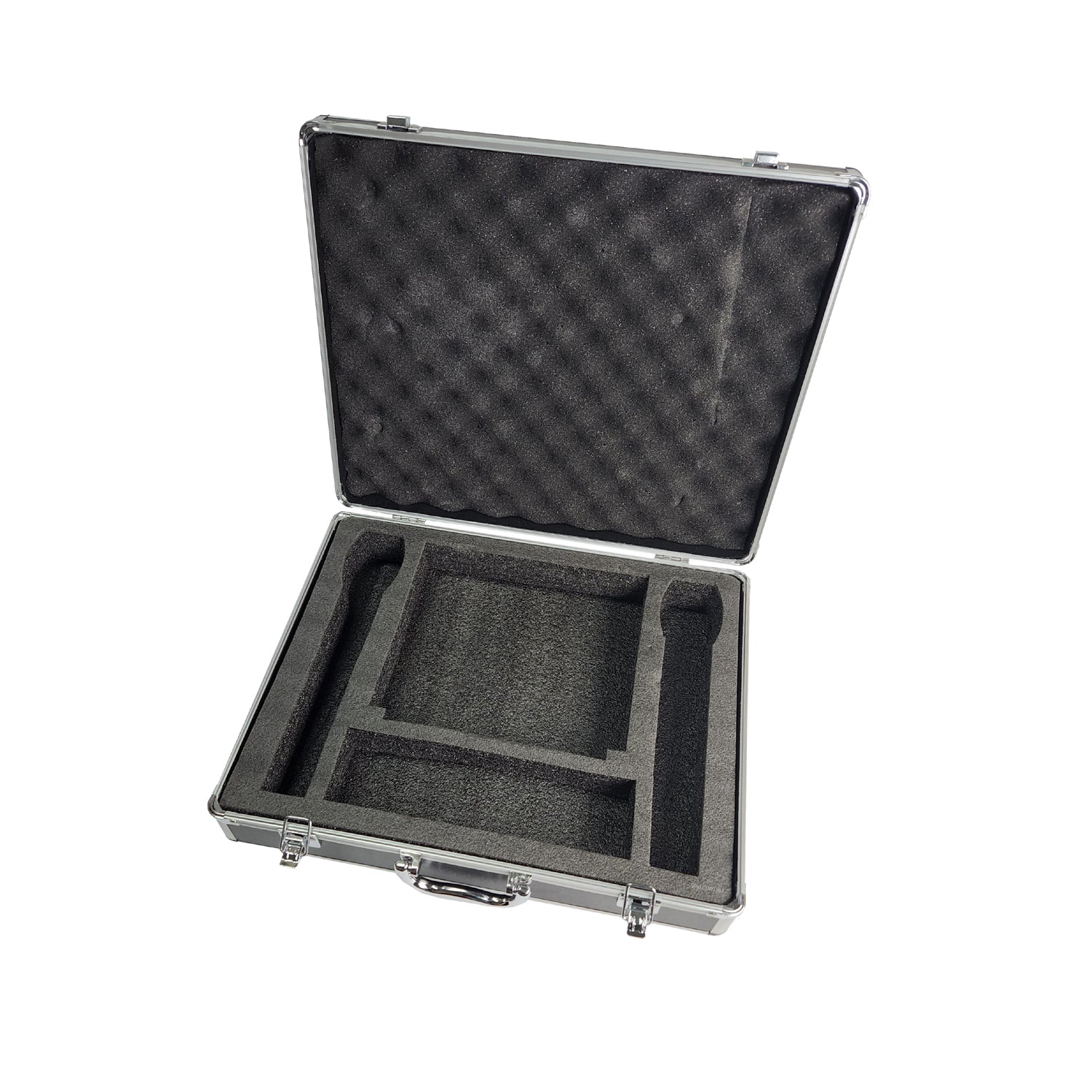

Also included is a protective carry case.
Perfect for venues running multiple wireless systems at once: clubs, pubs, fitness studios, DJs, musicians, karaoke bars, and live events.
Reliable, Interference-Free Performance

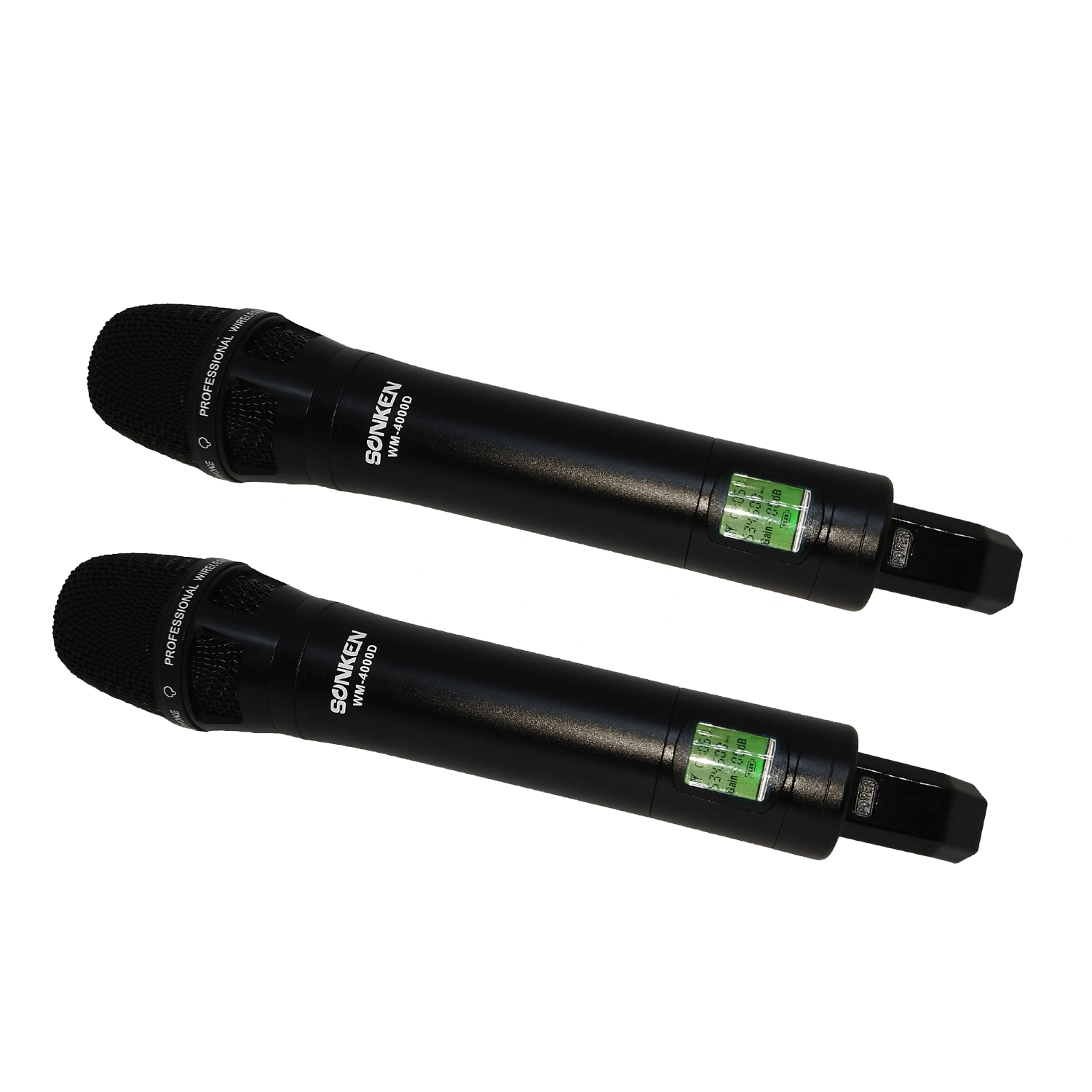

Each handheld microphone offers 100 selectable frequencies, ensuring clean, stable audio free from dropouts or interference. Ideal for setups where several wireless microphones are used simultaneously.
Professional Features
- Built-in battery tester on each microphone
- LED battery strength indicators
- On/off switch on each mic

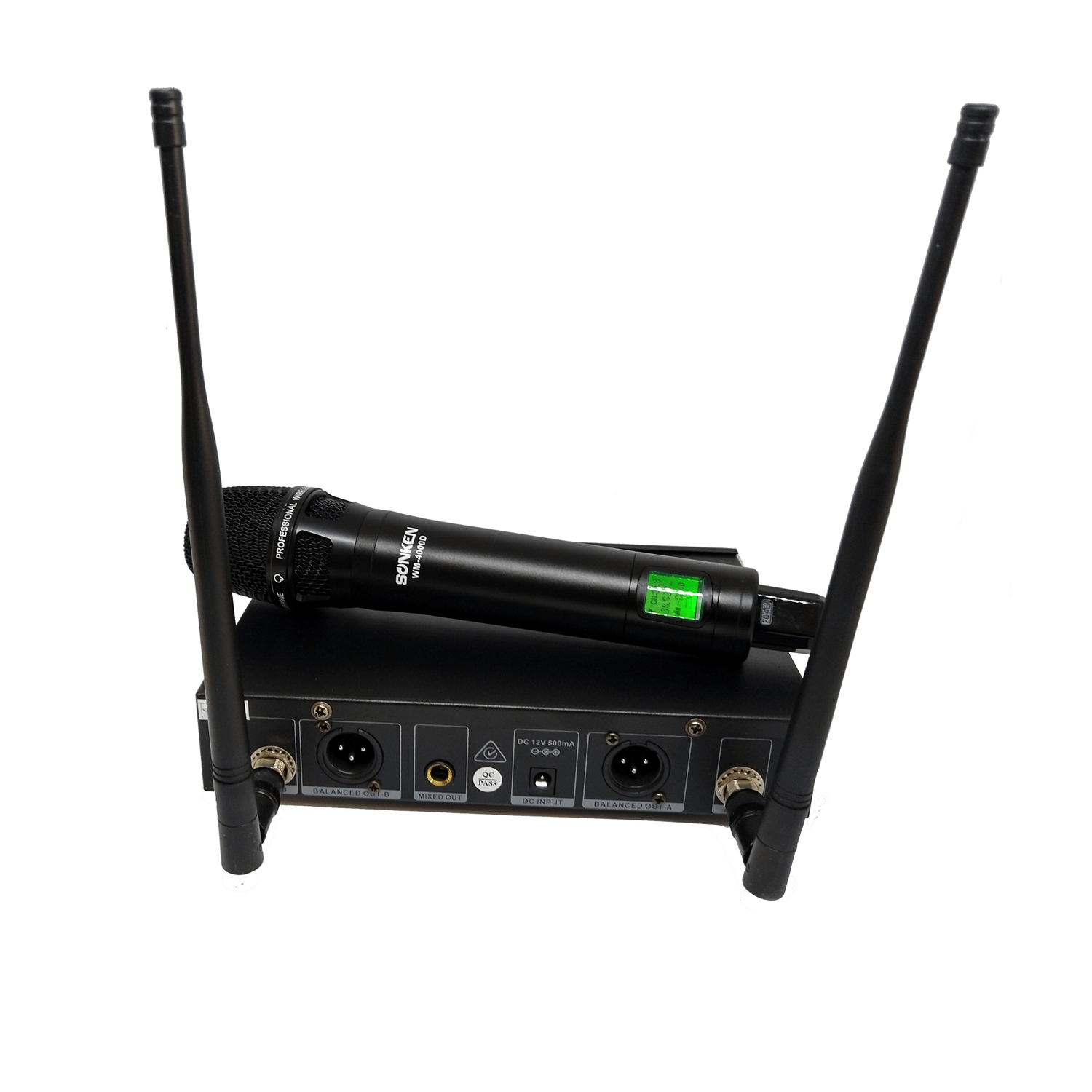

- Receiver includes independent volume controls, dual RF/AF level meters, and fixed front antennas
- Connect via 6.35 mm mixed output or dual balanced XLR outputs (A + B)
- Rear-panel dual squelch control and mixing on/off function
Easy Connectivity
Simply connect the 4000D receiver to your karaoke machine or amplifier using the included 6.35 mm jack cable. Professional XLR outputs are also available for advanced audio setups.
What’s Included
- 2 × UHF handheld wireless microphones (520–569 MHz, 100 channels each)
- 1 × Protective Carry Case
- 4 × AA batteries (2 per microphone)
- 1 × Australian power supply
- 1 × 6.35 mm jack-to-jack cable
Technical Specifications
Overview
- Dual UHF receiver + 2 handheld microphones
- Mic 1 Frequency Range: 520.00 – 544.75 MHz
- Mic 2 Frequency Range: 545.00 – 569.75 MHz
- Total Channels: 200 (100 per mic)
System
- Carrier Frequency: 520–694 MHz
- Frequency Stability: ±0.005%
- Modulation: FM
- Max Deviation: ±15 kHz
- Frequency Response: 40 Hz – 20 kHz
- S/N Ratio: >100 dB
- Dynamic Range: >100 dB
- THD: ≤0.5%
- Operating Range: Up to 80 m (optimal conditions)
- Operating Temp: -10°C to 50°C
Microphones
- RF Output Power: 30 mW (max)
- Spurious Emissions: >45 dB
- Antenna: Internal
- Capsule: Uni-directional dynamic
- Power: 2 × AA batteries per mic
- Current Draw: Approx. 25 mA
- Battery Life: 6–8 hours
